Standard Cloud Link Deployment
In a standard Cloud Link deployment, SOTI MobiControl Cloud and the Cloud Link Agent communicate directly to extend enterprise resources required by SOTI MobiControl Cloud.

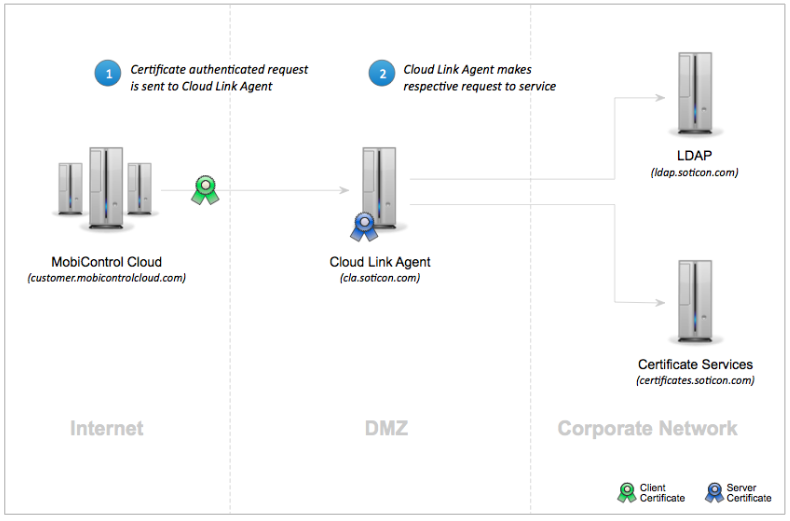

The following diagram illustrates the standard deployment topology, which suggests that the Cloud Link Agent be positioned within the DMZ of your network.
Network Requirements
The "Standard Cloud Link Deployment Communication Matrix" table represents the communication requirements between the SOTI MobiControl Cloud and the Cloud Link Agent, and between the Cloud Link Agent and enterprise services available to SOTI MobiControl Cloud.
Bold text indicates mandatory communication. CLA = Cloud Link Agent
| Protocol | Source | Port | Destination | Port |
|---|---|---|---|---|
| HTTPs | SOTI MobiControl Cloud | 443 | CLA Host | 443 |
| LDAPs | CLA Host | 636 | AD | 636 |
| HTTPs | CLA Host | 443 | ADCS | 443 |
| DCOM | CLA Host | 135 | ADCS | 135 |
